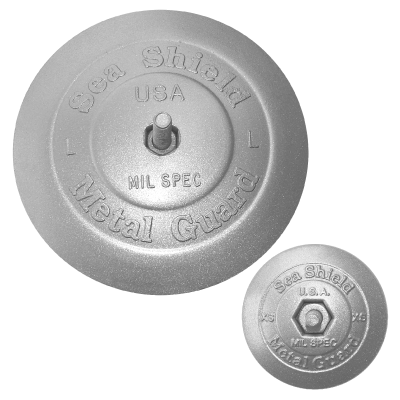

Rudder and Trim Tab Anodes Aluminum
RB-XS-ALU
$4.75
Sale price
$4.75
Regular price
$10.33
Skip to product information
Rudder and Trim Tab Anodes Aluminum
$4.75
Sale price
$4.75
Regular price
$10.33
- Deep slotted stainless steel machine screw for maximum torque.
- Extra small mounts with 10-24X1″ machine screw.
- Small mounts with 1/4″-20X1-3/4″ machine screw.
- Medium mounts with 1/4″-20X2” machine screw.
- Large mounts with 5/16″-18X2″ machine screw.
- Stainless steel allen cap screws available upon request.
- Encapsulated nut prevents fallout.
| Part No | Thickness | Outside Dim | Weight(lb) | Box Qty |
|---|---|---|---|---|
| RB-XS-ALU | 3/8″ | 1-7/8″ | 0.103 | 50 |
| RB-S-ALU | 3/4″ | 2-3/4″ | 0.431 | 25 |
| RB-M-ALU | 3/4″ | 3-3/4″ | 0.699 | 20 |
| RB-L-ALU | 11/16″ | 5″ | 1.304 | 6 |
| RB-XM-ALU | 3/4″ | 4-1/4″ | 0.900 | 20 |
| RB-XL-ALU | 7/8″ | 6-7/8″ | 3.553 | 4 |
| RB-R2-ALU | 1/2″ | 3″ | 0.38 | 25 |
Rudder and Trim Tab Anodes
Sea Shield Marine Rudder & Trim Tab anodes are available in zinc or aluminum – as extra small, small, medium, large, and extra large. These boat zincs help streamline vessels by minimizing drag and turbulence. They can be installed on rudders, trim tabs, struts, or even flat areas. Each unit is designed with an encapsulated nut to prevent it from falling off.
