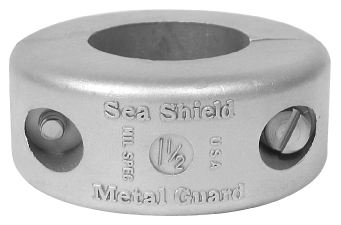

Limited Clearance Collars Aluminum
Limited Clearance Collars Aluminum
The perfect zinc for that tight squeeze on your prop shaft! Sea Shield Marine Limited Clearance Collars provide easy size verification, are pressure die cast and conform to the highest Mil-Spec standards. Our Limited Clearance Collars are available in Zinc and Aluminum, install with just 2 deep-slotted stainless steel machine screws providing maximum torque, and are precision engineered for consistency.
Aluminum Limited Clearance Collars
Sea Shield Marine Limited Clearance Collars provide easy size verification, are pressure die cast and conform to the highest Mil-Spec standards. Our Limited Clearance Collars are available in Zinc and Aluminum, install with just 2 deep-slotted stainless steel machine screws providing maximum torque, and are precision engineered for consistency.
-
- Easy size verification inside and outside.
- Easy installation-deep slotted stainless steel machine screws for maximum torque.
- Stainless steel Allen cap screws available upon request.
- Innovative O-rings keep screws from falling out.
| Part No | Shaft Size | Thickness | Outside Dim | Weight(lb) | Box Qty |
|---|---|---|---|---|---|
| LC-0750-ALU | 3/4″ | 1″ | 2″ | 0.20 | 27 |
| LC-0875-ALU | 7/8″ | 1″ | 2″ | 0.24 | 27 |
| LC-1000-ALU | 1″ | 1-1/4″ | 2-1/4″ | 0.36 | 27 |
| LC-1125-ALU | 1-1/8″ | 1-1/4″ | 2-1/2″ | 0.38 | 27 |
| LC-1250-ALU | 1-1/4″ | 1-1/4″ | 2-1/2″ | 0.39 | 27 |
| LC-1375-ALU | 1-3/8″ | 1-1/4″ | 2-3/4″ | 0.46 | 27 |
| LC-1500-ALU | 1-1/2″ | 1-1/4″ | 3″ | 0.53 | 27 |
| LC-1750-ALU | 1-3/4″ | 1-1/4″ | 3-3/4″ | 0.91 | 8 |
| LC-2000-ALU | 2″ | 1-1/4″ | 3-3/4″ | 0.79 | 8 |
| LC-2250-ALU | 2-1/4″ | 1-3/4″ | 4″ | 1.02 | 7 |
